TTC323-U
Specifications
- Element : Back Electret-Condenser
- Polar Pattern : Cardioid
- Frequency Response : 70~15K Hz
- Open Circuit Sensitivity : -66±3 dB (0 dB = 1 V/microbar) (at 1K Hz)
- Impedance : 1,500 Ω
- Operating Voltage : 1.5~10 V DC (RL : 2K2 Ω)
- Color : Skin . Black
- Connector : TA3F . TA4F . MiniJack . 3pin Lemo . Φ3.5 Plug
- Dimensions : Φ7.3 x 17.3 mm
- Wire : Φ1.5 mm x 1.2 Meter

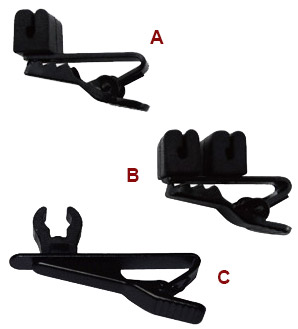

- Accessory : Windscreen . Clip
- S/N Ratio: 58 dB
- SPL: 115 dB
