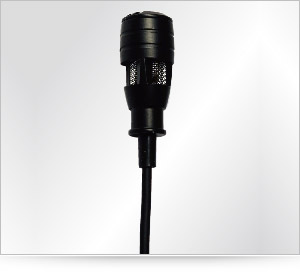

TTC325-U
Specifications
- Element : Back Electret-Condenser
- Polar Pattern : Cardioid
- Frequency Response : 80~18K Hz
- Open Circuit Sensitivity : -66±3 dB (0 dB = 1 V/microbar) (at 1K Hz)
- Impedance : 600 Ω
- Operating Voltage : 1.5~10 V DC (RL : 680 Ω)
- Color : Skin . Black
- Connector : TA3F . TA4F . TMiniJack . 3pin Lemo . Φ3.5 Plug
- Dimensions : Φ11.2 x 25 mm
- S/N Ratio : 58 dB
- SPL : 100 dB
- Wire : Φ2 mm x 1.2 Meter

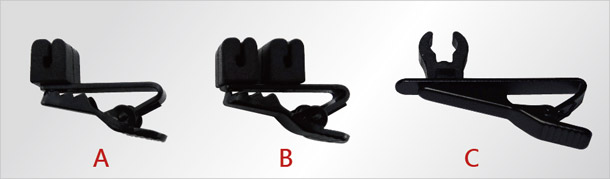

- Accessory : Windscreen . Clip
